Description

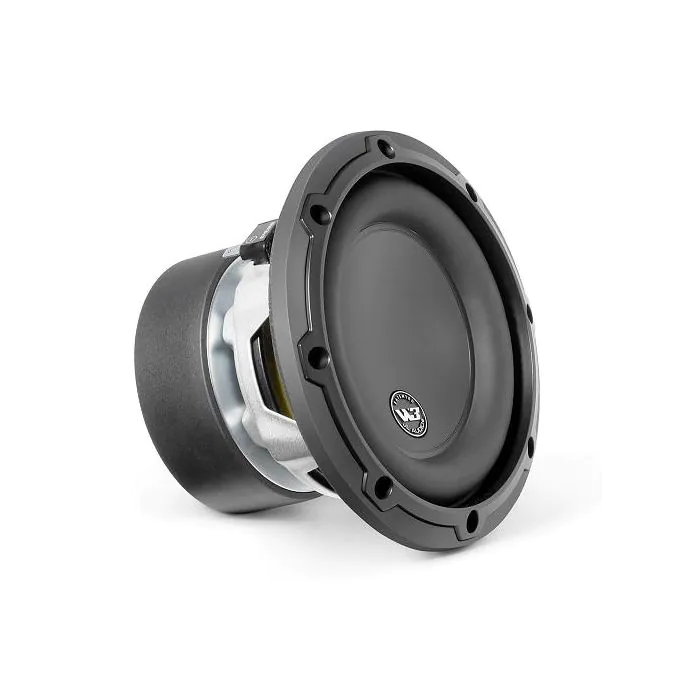

Clearly the best sounding W3’s yet, these subwoofers feature DMA-optimized, long linear excursion capability to minimize distortion and increase output. W3v3’s are available in single 2 ohm, 4 ohm and 8 ohm versions (6W3v3 available in 4 ohm and 8 ohm only) and are superb performers at medium power levels in compact sealed or ported enclosures.
Multiple patented technologies enhance performance and reliability. As with JL Audio’s flagship drivers, development was guided by JL Audio’s proprietary DMA (Dynamic Motor Analysis) modeling system to deliver outstanding dynamic stability and low-distortion operation within their intended power envelope.
Authorised UK Dealer for JL Audio
Free Air Resonance (Fs): 41.80 Hz
Electrical “Q” (Qes): 0.533
Mechanical “Q” (Qms): 11.027
Total Speaker “Q” (Qts): 0.508
Equivalent Compliance (Vas): 0.181 cu. ft. / 5.13 litres
One-Way, Linear Excursion (Xmax)*: 0.35 in. / 8.89 mm
Reference Efficiency (no): 0.07%
Efficiency (1W/1m)**: 80.49 dB SPL
Effective Piston Area (Sd): 17.36 in. sq. / 0.0112 sq. m
DC Resistance (Re): 3.476 ohm
Nominal Impedance (Znom): 4 ohm
Thermal Power Handling (Pt): 150W
Driver Displacement: 0.03 cu. ft. / 0.85 liters
Net Weight: 6.1 lbs. / 2.8 kg
