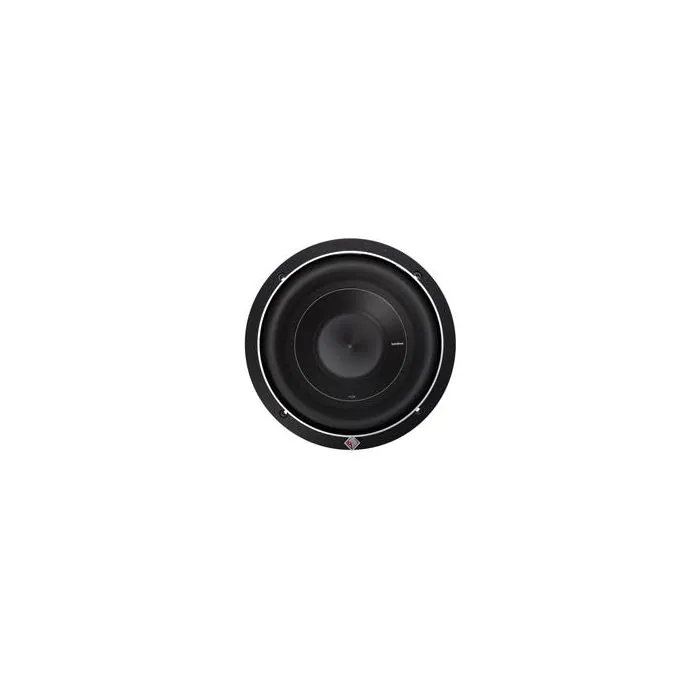

Rockford Fosgate Punch Series P2D4-8 – 8″ P2 4-Ohm DVC Subwoofer

Description

Rockford Fosgate has always been known as “The PUNCH” and the P2 8″ subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring.

Specifications:

Custom 10-AWG nickel plated push terminals
Diamond cut cast aluminum trim ring with optional grille
Dual linear spider with embedded 16 AWG tinsel leads
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Kevlar fiber reinforced paper cone
Protective PVC textured magnet cover
StampCast basket with integrated spider venting
Size: 8″
Nominal Impedance: Dual 4-Ohm
Power Handling: 250 Watts RMS / 500 Watts Max
Voice Coil Diameter: 2.25″ (57.7 mm)
Magnet Weight: 49 oz. 1.38 kg.
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 43
Re (Ohms): 6.90
Le (mH): 4.3
Qms: 5.40
Qes: 0.58
Qts: 0.52
Vas (Liters): 9.9
Sd (cm2): 221
SPL (dB @ 1w/1m): 83
Xmax (mm): 7.7
Woofer Displacement: 0.071 cu. ft. (2.0 Liters)
Cutout Diameter: 7.13 in. (181 mm)
Mounting Depth: 4.76 in. (120.8 mm)
